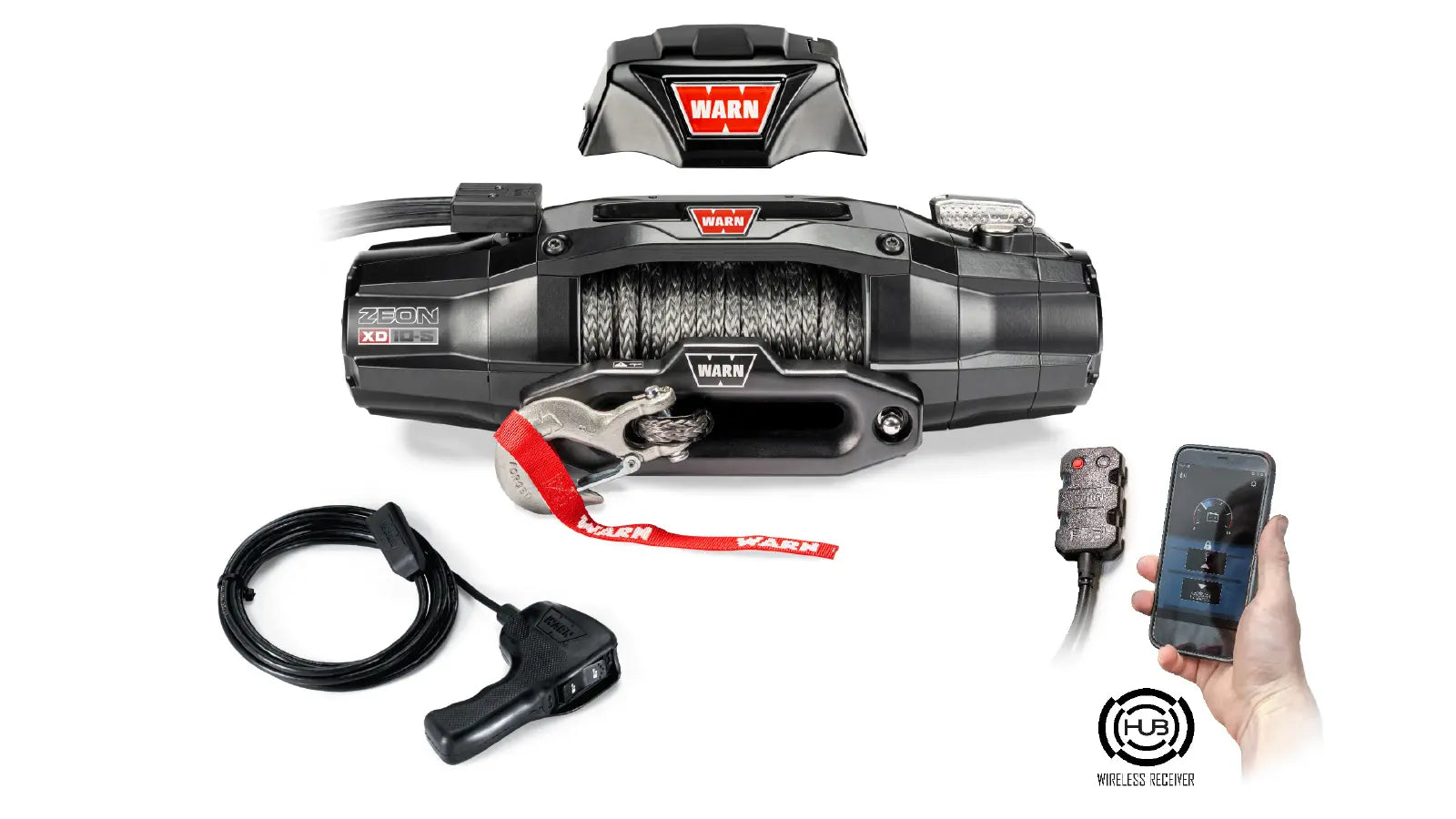

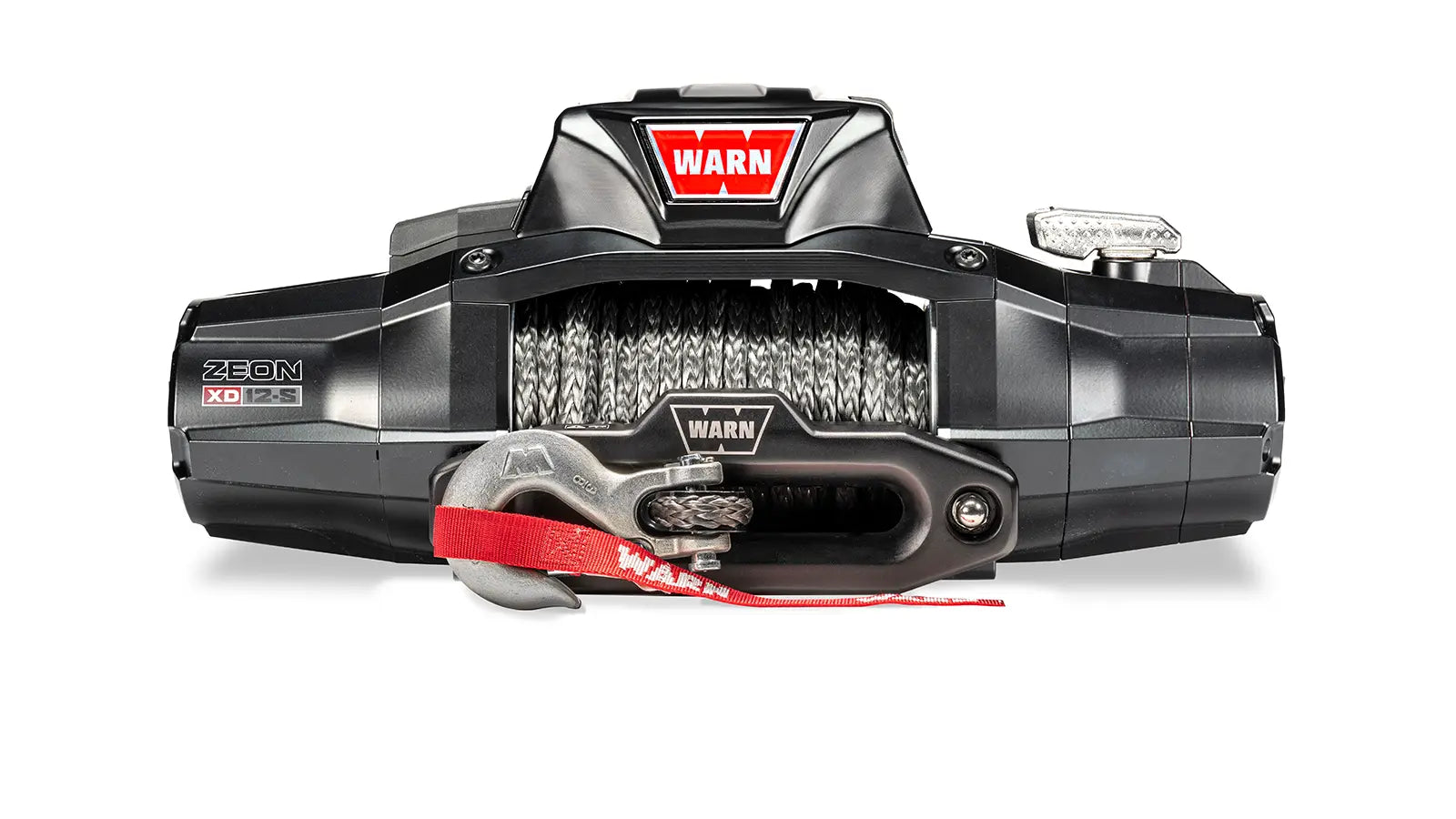

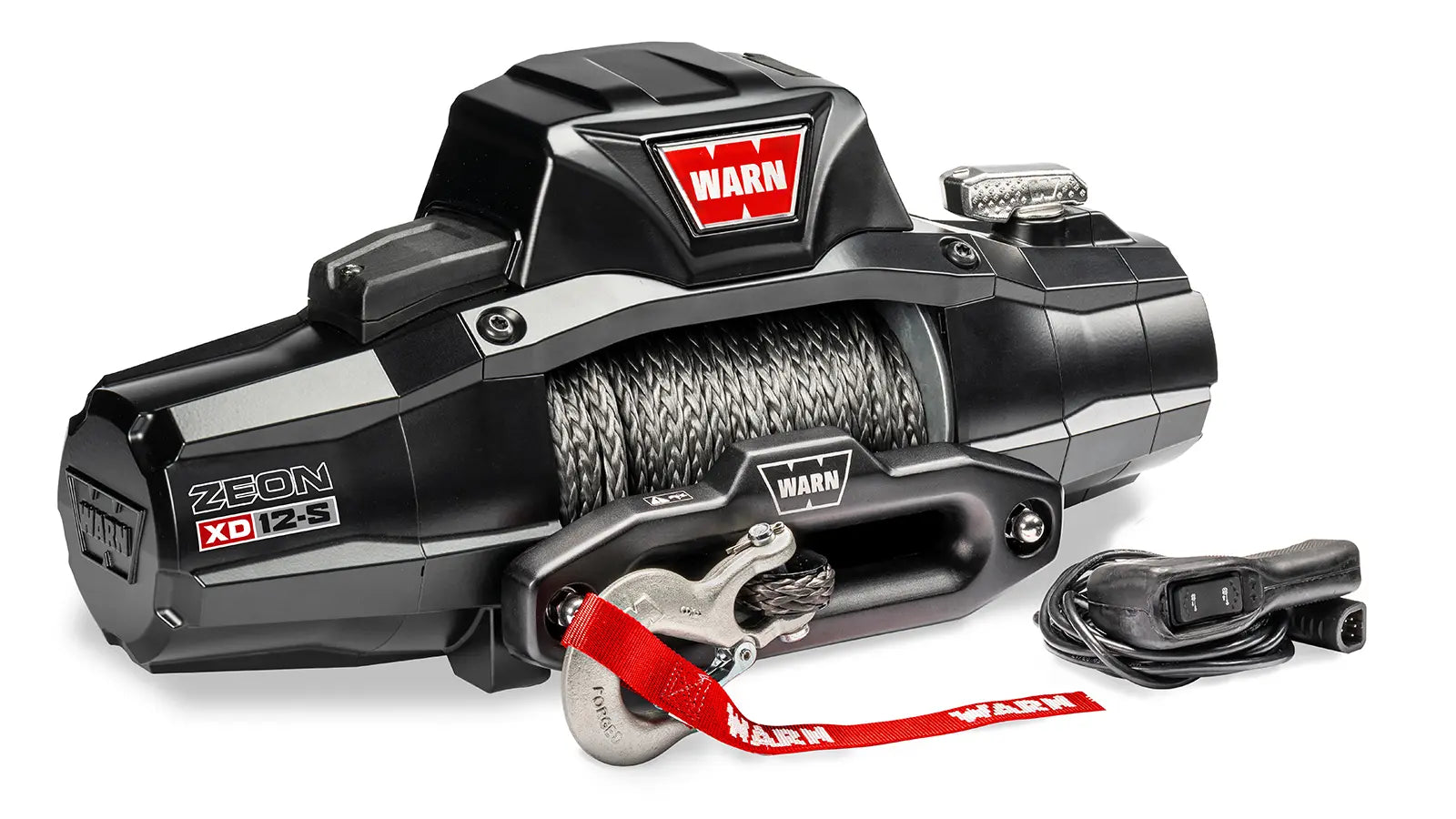

WARN ZEON XD 12-S Winch – 12,000 lb – Synthetic Rope

WARN ZEON XD 12-S Winch – 12,000 lb – Synthetic Rope

by WARN
$1,989.40

The WARN ZEON XD 12-S is a 12,000 lb recovery winch designed for full-size trucks, SUVs, Jeeps, and heavily equipped overland vehicles that need strong pulling capability. It uses 80 ft x 3/8 in Spydura PRO synthetic rope with a hawse fairlead, giving the system a lighter and easier-to-handle recovery line than a comparable steel-rope setup. The XD platform is built around high-performance recovery hardware intended for demanding trail conditions and frequent off-road use. Its substantial 12,000 lb capacity provides additional recovery margin for vehicles carrying bumpers, armor, camping equipment, and other added weight. The synthetic-rope configuration also makes deployment and line management more convenient when setting up a recovery. Installed on a compatible bumper or mounting plate, the ZEON XD 12-S is a strong option for customers who want high capacity, premium synthetic rope, and a recovery system built for serious use.

WARN ZEON XD 12-S Winch – 12,000 lb – Synthetic Rope $1,989.40

Full-size trucks, SUVs, Jeeps, and heavily equipped overland 4x4s needing 12,000 lb recovery capacity. Requires a compatible winch bumper, carrier, or mounting plate.

12,000 lb rated line pull
80 ft x 3/8 in Spydura PRO synthetic rope
Hawse fairlead
High-performance motor and geartrain for fast line speed
IP68 / IP69K waterproof and high-pressure spray protection
Full metal armor and OE-grade corrosion-resistant finish
Albright contactor with bus-bar electrical connections
Wired and wireless remote control
Limited lifetime mechanical / 7-year electrical warranty

Brand: WARN
Part Number: 110012
Series: ZEON XD
Rated Line Pull: 12,000 lb
Voltage: 12V
Rope: 80 ft x 3/8 in Spydura PRO synthetic rope
Fairlead: Hawse
Remote: Wired + wireless
Waterproof Rating: IP68 / IP69K
Gear Ratio: 176:1
Gearing: 3-stage planetary

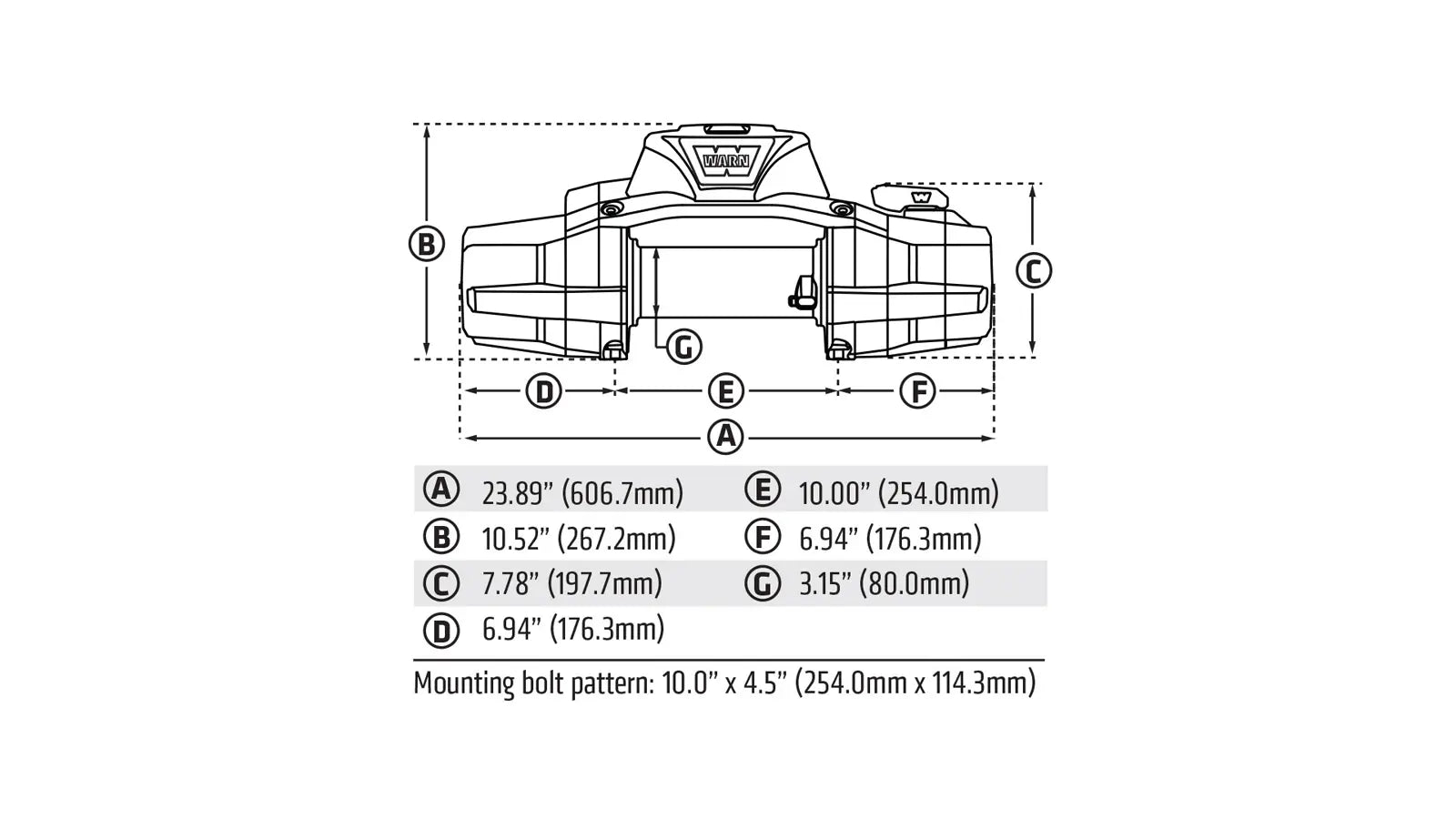

Overall Size (L x W x H): 23.9 x 7.1 x 10.5 in
Mount Type: Fixed vehicle mount; compatible bumper or mounting plate required
