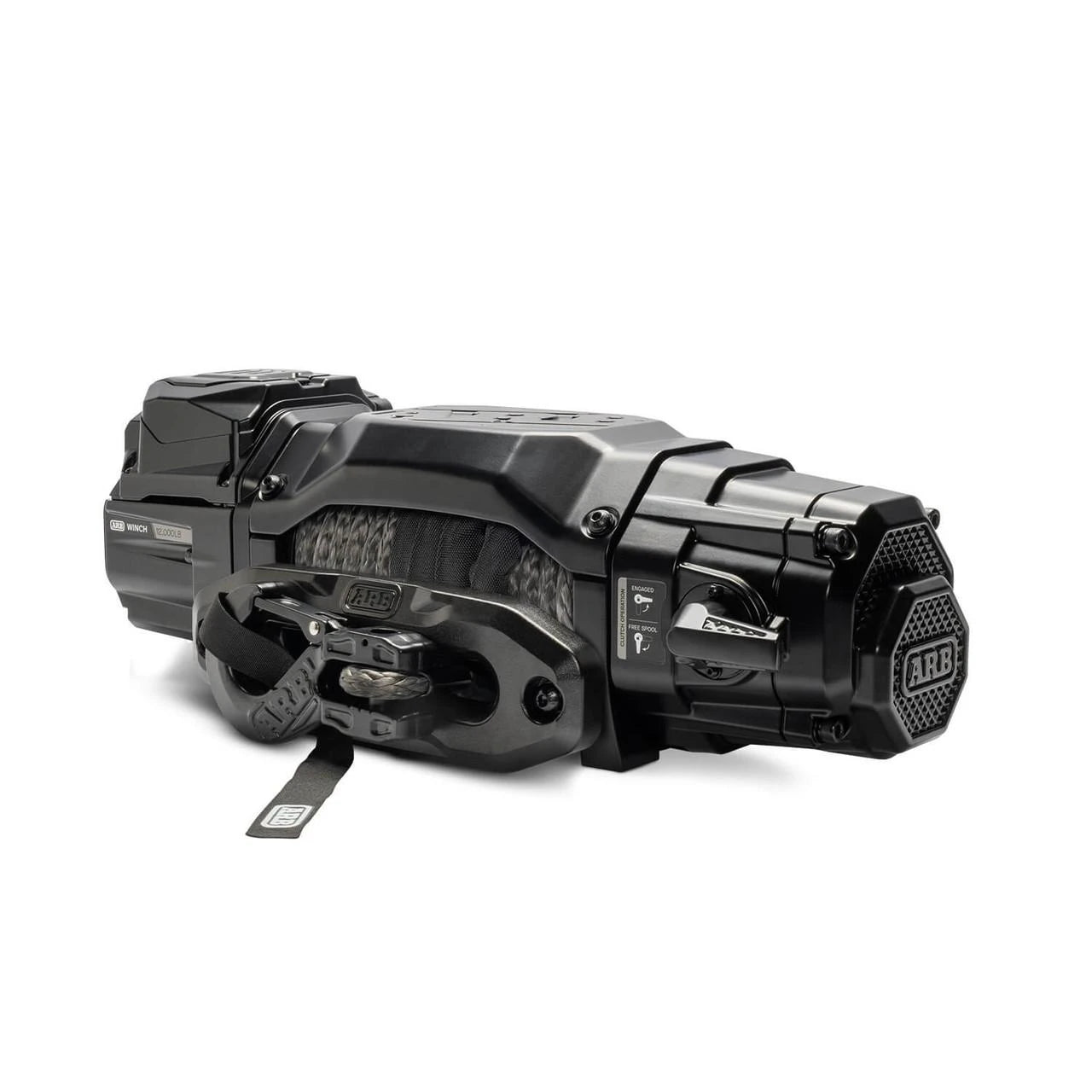

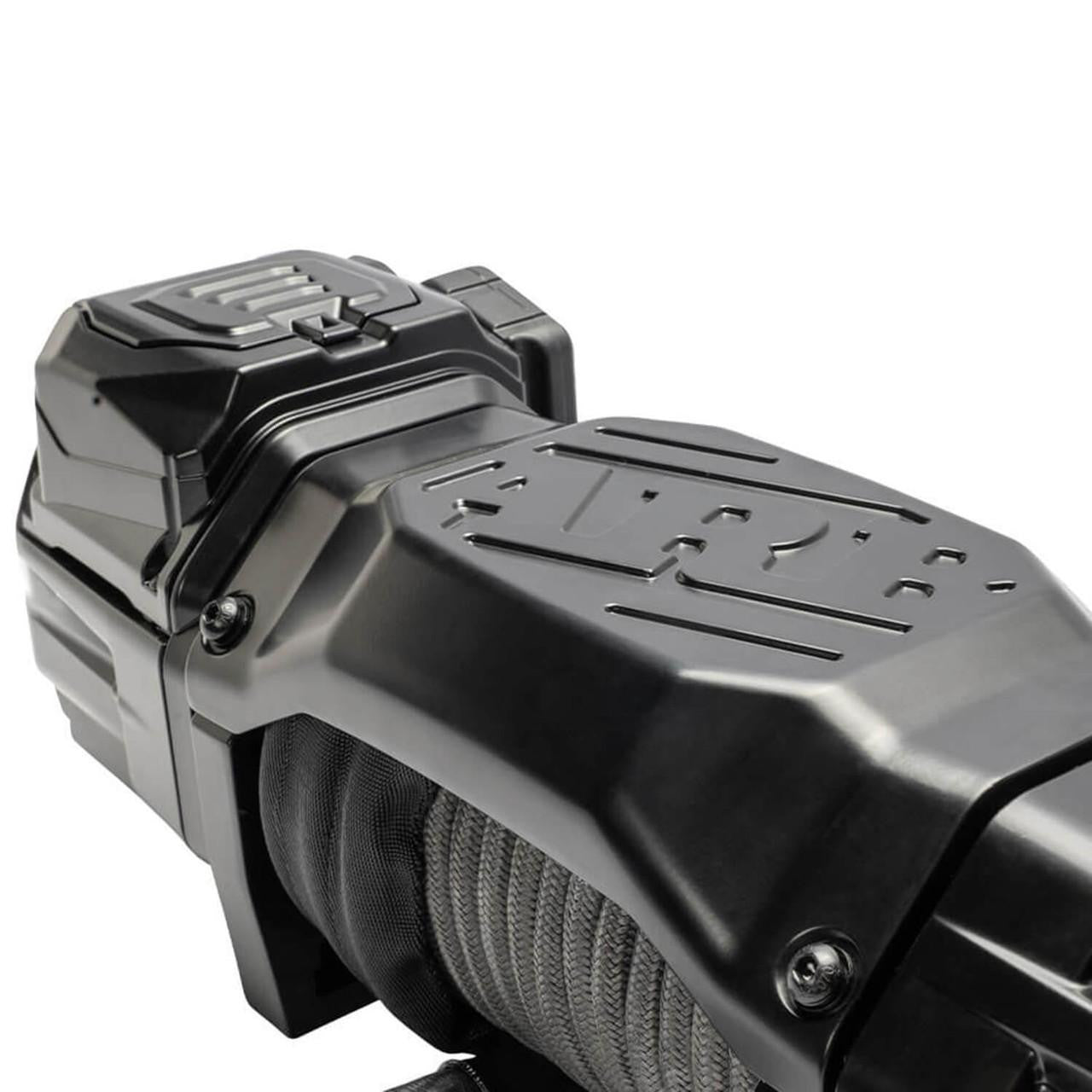

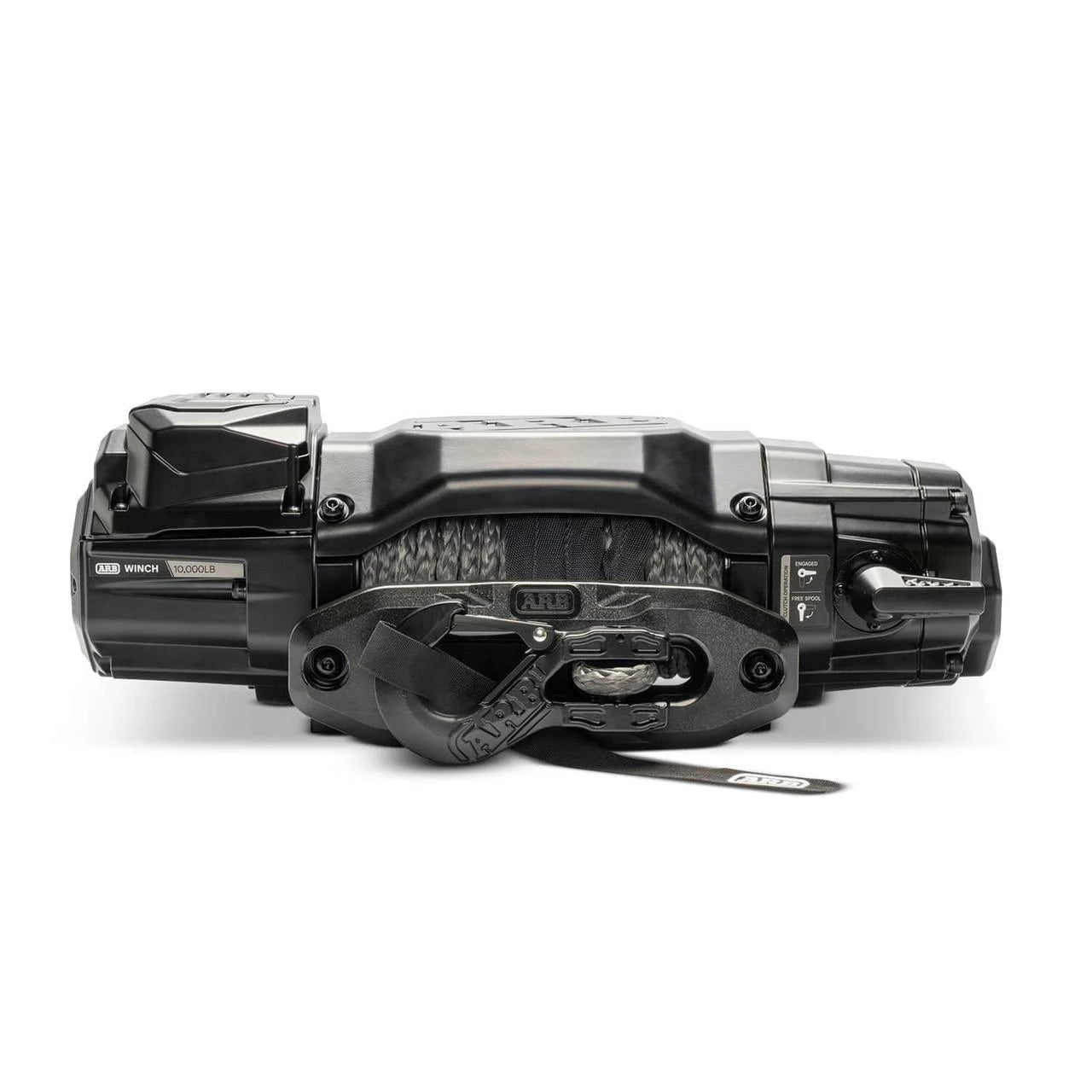

ARB 10,000 lb Winch with Synthetic Rope

ARB 10,000 lb Winch with Synthetic Rope

by ARB
$1,369.95

Equip a winch-ready off-road vehicle with the ARB 10,000-lb Winch and Synthetic Rope, engineered for strong, controlled vehicle recovery without a bulky external control box. The lightweight synthetic line is easier to handle than steel cable and stores less kinetic energy, while the integrated architecture supports a cleaner bumper installation.

A custom Albright contactor connects directly to the motor to improve efficiency and simplify packaging. The four-stage gearbox uses hardened-steel gears and a 171:1 ratio to balance pulling power with line speed. A gearbox-mounted brake provides 100% load holding and allows powered unspooling under no load without brake damage.

The dual-mode controller supports a sealed 2.4GHz wireless connection plus wired operation, and the remote-mounted control plug preserves access on low-profile or hidden installations. A 500A isolation switch with universal mount, stainless lanyard and dust cover is included. Select a bumper, fairlead, electrical system and recovery accessories rated for the vehicle and winch capacity.

ARB 10,000 lb Winch with Synthetic Rope $1,369.95

Universal winch-ready vehicles

10,000-lb rated pulling capacity
Lightweight synthetic recovery rope
Custom motor-mounted Albright contactor improves efficiency
Integrated design eliminates a bulky separate control box
Four-stage gearbox with hardened-steel gears
171:1 gear ratio balances line speed and pulling power
Gearbox-mounted brake provides 100% load holding
Powered no-load unspooling without brake damage

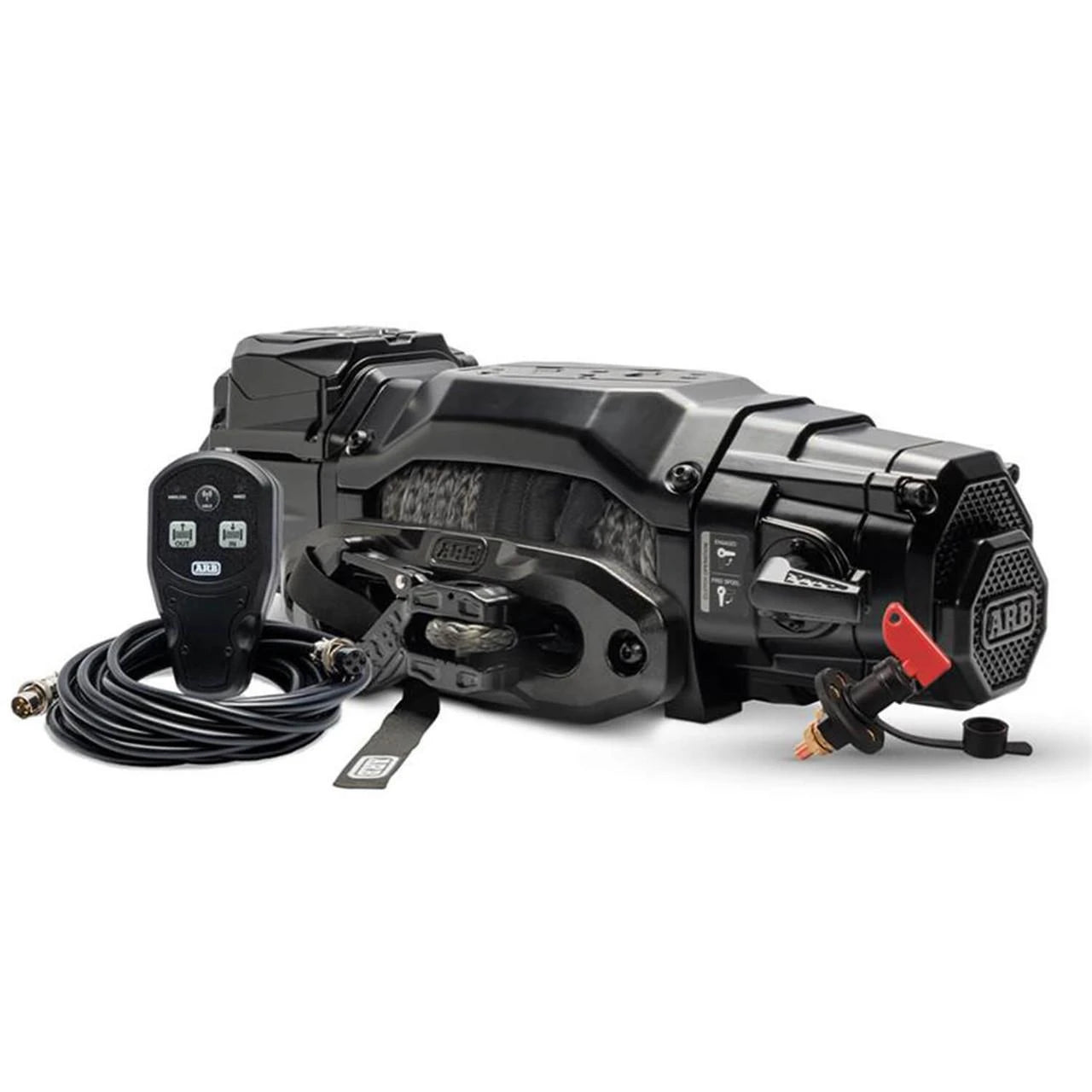

Dual wired and 2.4GHz wireless remote control
Sealed wireless receiver circuitry helps prevent interference
Remote-mounted control plug supports hidden installations
500A isolation switch with universal mount included
Stainless isolation-switch lanyard and dust cover included
Pre-wired for installation
Limited lifetime mechanical warranty; seven-year electrical warranty

Brand: ARB 4x4 Accessories
ARB Parent Part Number: ARW1XXSA
Capacity: 10,000 lb
Rope: Synthetic
Pre-Wired for Installation: Yes
Load Holding: 100%
Control Architecture: Built-in / motor-mounted contactor
Remote Connection: Wired and 2.4GHz wireless
Gearbox: Four-stage hardened-steel gearing
Gear Ratio: 171:1
Isolation Switch: 500A with universal mount
Material: Aluminum / steel
Color: Black
Warranty: Limited lifetime; 7 years on electrical components
